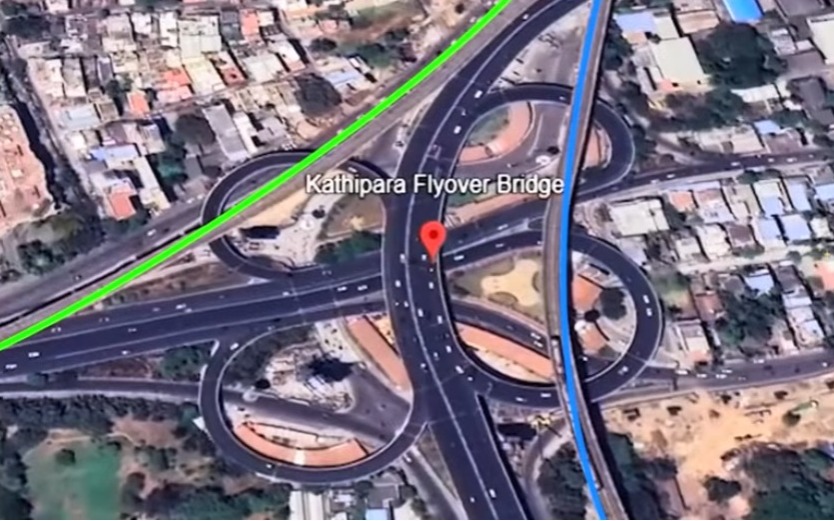

The Kathipara Metro flyover, part of Chennai Metro Phase 2 – Corridor 5, is one of India’s most ambitious elevated metro structures. Located above the bustling Guindy – Kathipara Junction, this bridge showcases advanced engineering, multi-level transit planning, and smart metro infrastructure design. For a junction already packed with flyovers, loops, and rail lines, constructing a new metro via duct here required exceptional precision. At Cibi + Simeon Designs, we study such landmark infrastructure to understand and share how architectural clarity and structural intelligence come together in modern urban design.
A Multi-Level Engineering Marvel at Kathipara

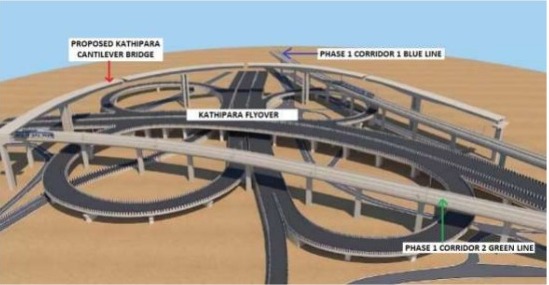

The Guindy–Kathipara Metro Bridge is not a simple extension of the metro line — it is a multi-tier flyover built directly above the existing St. Thomas Mount metro line. This Kathipara Metro Flyover vertical stacking of transportation layers makes Kathipara one of the most complex junctions in India.
Key metrics from the project include:
- Total Height: 108 feet
- Main Span: 125 meters (above existing line)
- Clearance Between Two Metro Lines: 2.3 meters
These figures place the structure among India’s tallest metro flyovers.
Why a 125-Meter Cantilever Span Was Needed?
Kathipara Junction is surrounded by:
- Existing metro tracks
- Multiple highway flyovers
- Circular ramp loops
- High traffic volume
- Limited foundation space
Because of this dense environment, building pillars in the middle of the alignment was impossible. Engineers had to design a 125-meter-long clear span, achievable only through the balanced cantilever construction method.
Balanced Cantilever Method: Perfect for Kathipara
The balanced cantilever system allows the bridge to grow segment by segment from each side of the pier, like two arms stretching outward.
How It Works at Kathipara
- 1. A central pier and pier cap were constructed first.
- 2. Segments are added symmetrically to maintain balance.
- 3. The launching girder lifts each segment into place.
- 4. The two halves meet at mid-span with millimeter precision.
Why This Method Was Essential
- No need for ground-level scaffolding
- No traffic disruption at Kathipara
- Allows crossing over an active metro line safely
- Ideal for long spans (like this 125m section)
This technique is widely used in major flyovers worldwide — Kathipara is one of the best Indian examples.
Post-Tensioned (PT) Box Girder Segments
Each segment of the kathipara metro bridge is a post-tensioned concrete box girder. How PT Enhances the Bridge:
- Steel tendons are inserted in ducts inside segments
- After placement, hydraulic jacks tension the cables
- Compression strengthens the concrete
- The bridge becomes capable of carrying metro train loads effortlessly
Benefits of PT for the Guindy Kathipara Metro Bridge
- Achieves long spans without excessive depth
- Allows a sleek, elegant bridge profile
- Minimizes cracking and deformation
- Ensures long-term durability with lower maintenance
This combination of cantilever + PT makes the structure both strong and visually refined.

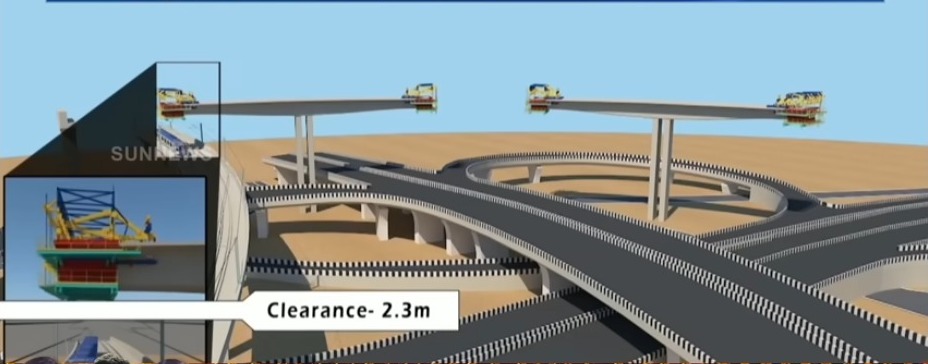

2.3-Meter Clearance: Precision Above the St. Thomas Mount Line
Building a metro bridge directly above an operational metro line is extremely challenging. The video confirms a 2.3-meter vertical clearance maintained between:
- The bottom of the new Corridor 5 viaduct
- The top of the existing St. Thomas Mount metro line
Why this clearance matters
- Ensures safe operation during and after construction
- Allows the launching girder to pass during segment erection
- Prevents vibration conflict between two independent structures
- Provides inspection & maintenance access
This level of detailing reflects world-class metro engineering.
Launching Girder: The Hero of the Construction Process
A massive Launching Girder System is used to lift, align, and place each PT segment.
Its Role at Kathipara
- Carries precast segments over live traffic and active metro tracks
- Ensures millimeter-accurate alignment
- Works safely within the 2.3m clearance zone
- Eliminates the need for cranes or support on the road below
This is one of the reasons the Kathipara metro work progressed without major public disruption.
Complex Pier Engineering
Piers in this section are not typical metro piers — they are specially designed for high loads.
Pier Features
- Extra reinforcement
- High bending and shear capacity
- Wider pier caps to support cantilever stresses
- Taller pier height (108 ft)
These piers act as the backbone of the long-span system.
Why the Kathipara Metro Bridge Matters for Chennai
Chennai Metro Phase 2 aims to reduce congestion, boost connectivity, and shape a more efficient city. The kathipara metro flyover specifically achieves:
- Faster metro movement across a dense interchange
- Zero disturbance to the existing St. Thomas Mount line
- A multi-level transit system for future growth
- A new structural landmark for the city
For architects and engineers, this project is a case study in smart infrastructure development.
For more details refer to this visual representation of Kathipara Metro Flyover
