Located at the Guindy junction, the Kathipara Bridge is more than just a flyover bridge—it’s a symbol of Chennai’s urban transformation. Connecting some of the city’s busiest routes, the Chennai Kathipara bridge plays a crucial role in easing traffic congestion and improving connectivity to key locations like the Chennai International Airport, Guindy industrial estate, and Koyambedu.
Often referred to as the Butterfly Bridge Chennai for its unique cloverleaf design, this engineering marvel is a favorite subject for urban designers, civil engineers, and infrastructure enthusiasts. The Guindy Kathipara bridge not only enhances mobility but also showcases smart design principles aligned with sustainability and efficiency.
Guindy Kathipara Bridge: Overview of Chennai’s Iconic Flyover
The Kathipara bridge junction is situated at Guindy, a major transportation hub in Chennai. It connects four critical arterial roads:
- GST Road (NH45)
- Anna Salai (Mount Road)
- Inner Ring Road
- Mount-Poonamallee Road
Planned by the National Highways Authority of India (NHAI), this Chennai Kathipara Bridge was built under the Golden Quadrilateral project to enhance city-wide traffic movement.
Design Concept and Structure of the Guindy Kathipara Bridge

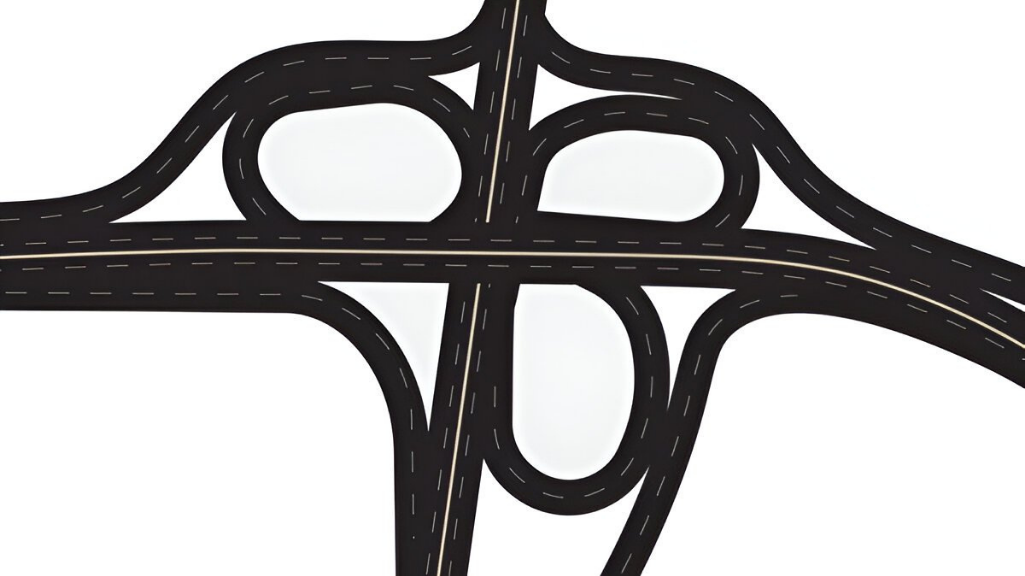

The Guindy Kathipara flyover is designed as a cloverleaf interchange, enabling uninterrupted traffic between the intersecting roads. It’s considered one of the largest structures of its kind in South India.
Key Highlights:
- Type: Cloverleaf Grade Separator
- Location: Alandur, Guindy, Chennai
- Significance: Among Asia’s largest cloverleaf interchanges
- Opened: 2008
- Span: Over 8–9 km of roadways
- Area Covered: More than 13 acres
Construction and Execution of the Guindy Kathipara Bridge Project
- Planning Authority: NHAI (Ministry of Road Transport & Highways)
- Construction Contractor: Larsen & Toubro (L&T)
- Design Consultants: STUP Consultants, Span Consultants, or L&T ECC in-house team
- Material Used: Pre-stressed concrete box girders and reinforced piers
- Structural System: RCC piers with deep pile foundations
Key Specifications of the Guindy Kathipara Bridge Junction
Flyover Specifications
- Main Flyover: 7.5 to 10.5 meters
- Ramps/Loops: 5.5 meters
Minimum 5.5 meters
- 50–60 km/h on main flyover
- 30–40 km/h on loops for safety
Up to 5 vertical layers including loops and ramps
Architectural Highlights of the Guindy Kathipara Bridge

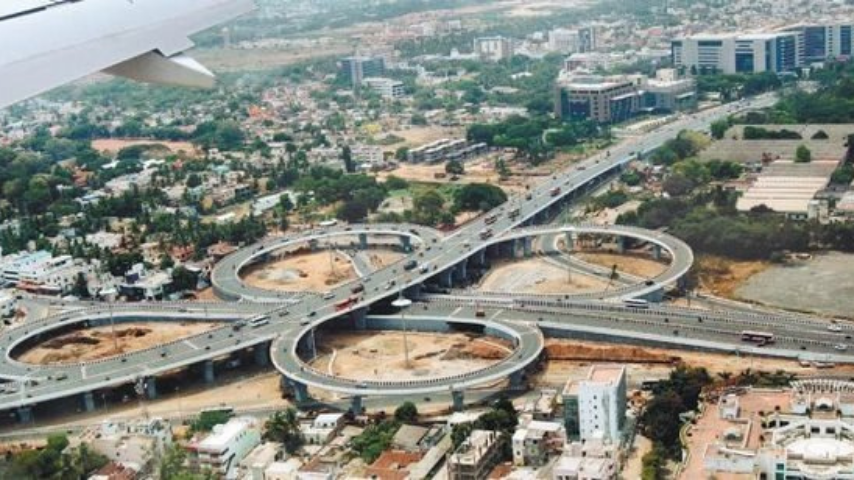

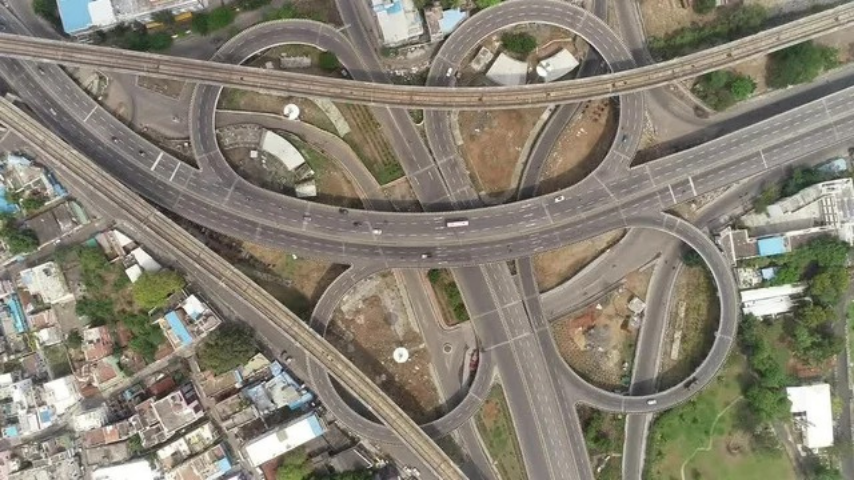

From an aerial view, the Kathipara flyover resembles a butterfly with its symmetrical loops and curves, earning it the nickname “Butterfly Bridge Chennai.” The cloverleaf design, featuring four large loops and multiple ramps, mimics the wings of a butterfly when seen from above.
This unique structure is not only functional but also visually striking—making it a landmark often featured in aerial photographs and drone videos of Guindy Kathipara. The balanced, wing-like layout reflects meticulous engineering precision and efficient urban planning, making it one of the most iconic Chennai bridge in terms of both design and utility.
Design Excellence
Enables smooth U-turns and merges
Maximizes vertical and horizontal space
Links to Guindy, Koyambedu, and Chennai Airport
Landscaping under the loops and illuminated pillars enhance visual appeal
Urban Impact of the Guindy Kathipara Bridge in Chennai
The Guindy Kathipara bridge has drastically transformed the urban commute by:
- Reducing congestion at key intersections
- Improving fuel efficiency by reducing idling
- Boosting connectivity between south Chennai suburbs and city core
- Enhancing road safety with signage, crash barriers, and lighting
Interesting Facts About the Guindy Kathipara Flyover
- One of India’s first functional cloverleaf interchanges
- Known unofficially as the Butterfly Bridge
- The central zone has been landscaped into a mini green park
- Handles thousands of vehicles per hour, making it one of the busiest Chennai bridges
Special Features of the Chennai Kathipara Bridge Junction

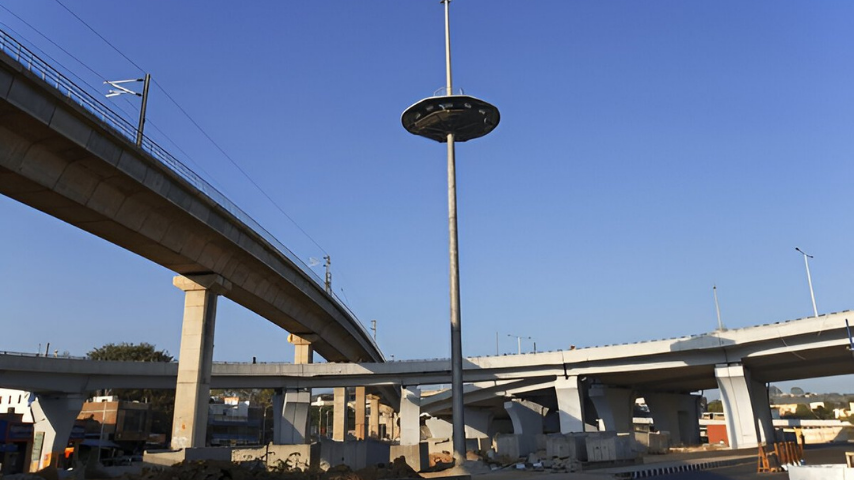

- High-mast lighting for visibility
- Parapet walls and crash barriers for safety
- Signage boards and route indicators
- Drainage systems to prevent waterlogging
- Tree-lined medians and loop-side landscaping

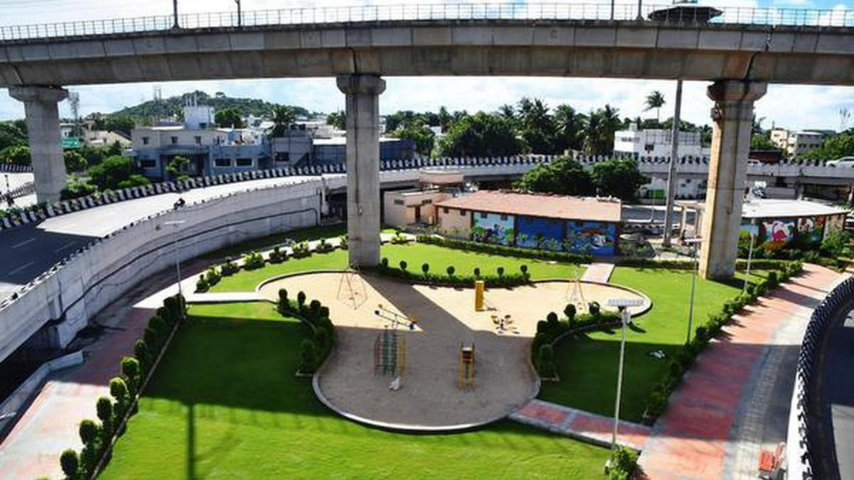

Kathipara Urban Square: Beneath the Flyover
Beneath the soaring loops of the Kathipara Flyover lies a surprising urban retreat—Kathipara Urban Square – Kathipara park, a thoughtfully designed park space that transforms the under-flyover area into a lively public zone. Developed by the Chennai Smart City initiative, this kathipara park features walking tracks, seating areas, an open-air amphitheatre, and lush landscaping that brings vibrancy and safety to what was once underutilized space. It’s a model of reclaiming urban land for community benefit, turning concrete zones into green, accessible spaces for leisure, culture, and recreation.
About Cibi + Simeon Designs: Visionaries in Urban Design
Cibi + Simeon Designs is a Chennai-based architectural company and interior design studio renowned for its innovative, context-driven approach to modern urban spaces. As one of the top 10 architects in Chennai, we focus on blending functionality, sustainability, and visual identity to create purposeful, aesthetically compelling environments.
Whether crafting elegant residential interiors or contributing to large-scale infrastructure projects, Cibi + Simeon Designs brings precision, creativity, and a deep understanding of design logic to every project. Our work reflects a commitment to enhancing user experience while strengthening both the structural and visual integrity of the spaces we design.
Experience the Iconic Journey Through Guindy Kathipara Bridge Chennai
The Kathipara bridge stands as a shining example of engineering excellence and urban foresight. As Chennai’s most significant flyover bridge, the Guindy Kathipara Bridge not only reduces travel time but also represents a smart fusion of design, safety, and sustainability. There are several flyovers in Chennai that significantly contribute to reducing traffic congestion across the city.
Whether you’re a commuter, urban planner, or simply a curious citizen, the Guindy flyover continues to be a testament to how infrastructure can uplift a city’s daily life while enhancing its skyline.
